htop on Ubuntu 16.04 x64

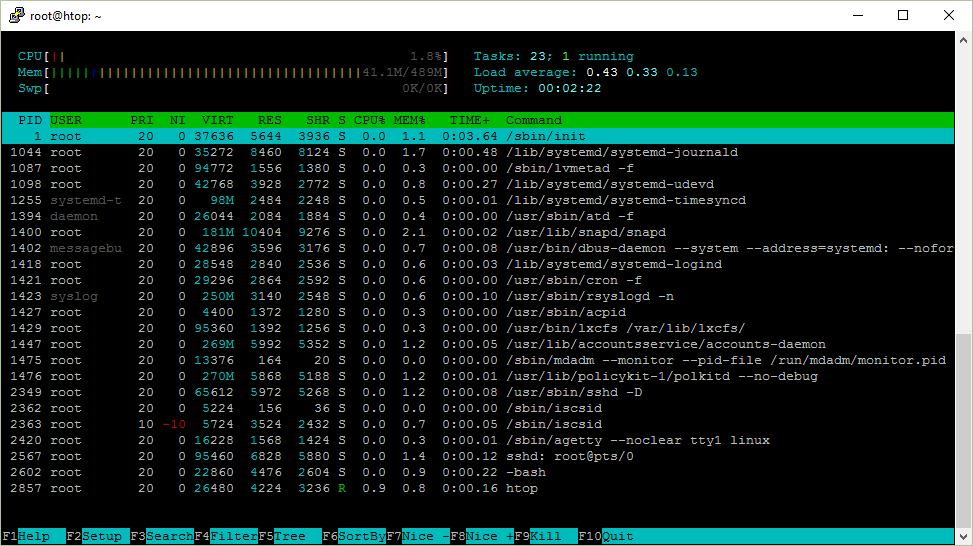

Here is a screenshot of htop that I am going to describe.

Screenshot of htop

Uptime

Uptime shows how long the system has been running.

You can see the same information by running uptime:

<code class="lang-bash">$ uptime
 12:17:58 up 111 days, 31 min,  1 user,  load average: 0.00, 0.01, 0.05
</code>

How does the uptime program know that?

It reads the information from the file /proc/uptime.

<code class="lang-bash">9592411.58 9566042.33
</code>

The first number is the total number of seconds the system has been up. The second number is how much of that time the machine has spent idle, in seconds The second value may be greater than the overall system uptime on systems with multiple cores since it is a sum.

How did I know that? I looked at what files the uptime program opens when it is run. We can use the strace tool to do that.

<code class="lang-bash">strace uptime
</code>

There will be a lot of output. We can grep for the open system call. But that will not really work since strace outputs everything to the standard error (stderr) stream. We can redirect the stderr to the standard output (stdout) stream with 2>&1.

Our output is this:

<code class="lang-bash">$ strace uptime 2&gt;&amp;1 | grep open
...
open(<span class="hljs-string">"/proc/uptime"</span>, O_RDONLY)          = 3
open(<span class="hljs-string">"/var/run/utmp"</span>, O_RDONLY|O_CLOEXEC) = 4
open(<span class="hljs-string">"/proc/loadavg"</span>, O_RDONLY)         = 4
</code>

which contains the file /proc/uptime which I mentioned.

It turns out that you can also use strace -e open uptime and not bother with grepping.

So why do we need the uptime program if we can just read the contents of the file? The uptime output is nicely formatted for humans whereas the number of seconds is more useful for using in your own programs or scripts.

Load average

In addition to uptime, there were also three numbers that represent the load average.

<code class="lang-bash">$ uptime
 12:59:09 up 32 min,  1 user,  load average: 0.00, 0.01, 0.03
</code>

They are taken from the /proc/loadavg file. If you take another look at the strace output, you’ll see that this file was also opened.

<code class="lang-bash">$ cat /proc/loadavg
0.00 0.01 0.03 1/120 1500
</code>

The first three columns represent the average system load of the last 1, 5, and 15 minute periods. The fourth column shows the number of currently running processes and the total number of processes. The last column displays the last process ID used.

Let’s start with the last number.

Whenever you launch a new process, it is assigned an ID number. Process IDs are usually increasing, unless they’ve been exausted and are being reused. The process ID of 1 belongs to /sbin/init which is started at boot time.

Let’s look at the /proc/loadavg contents again and then launch the sleep command in the background. When it’s launched in the background, its process ID will be shown.

<code class="lang-bash">$ cat /proc/loadavg
0.00 0.01 0.03 1/123 1566
$ sleep 10 &amp;
[1] 1567
</code>

So the 1/123 means that there is one process running or ready to run at this time and there are 123 processed in total.

When you run htop and see just one running process, it means that it is the htop process itself.

If you run sleep 30 and run htop again, you’ll notice that there is still just 1 running process. That’s because sleep is not running, it is sleeping or idling or in other words waiting for something to happen. A running process is a process that is currently running on the physical CPU or waiting its turn to run on the CPU.

If you run cat /dev/urandom > /dev/null which repeatedly generates random bytes and writes them to a special file that is never read from, you will see that there are now two running process.

<code class="lang-bash">$ cat /dev/urandom &gt; /dev/null &amp;
[1] 1639
$ cat /proc/loadavg
1.00 0.69 0.35 2/124 1679
</code>

So there are now two running processes (random number generation and the cat that reads the contents of /proc/loadavg) and you’ll also notice that the load averages have increased.

The load average represents the average system load over a period of time.

The load number is calculated by counting the number of running (currently running or waiting to run) and uninterruptible processes (waiting for disk or network activity). So it’s simply a number of processes.

The load averages are then the average number of those processes during the last 1, 5 and 15 minutes, right?

It turns out it’s not as simple as that.

The load average is the exponentially damped moving average of the load number. From Wikipedia:

Mathematically speaking, all three values always average all the system load since the system started up. They all decay exponentially, but they decay at different speed. Hence, the 1-minute load average will add up 63% of the load from last minute, plus 37% of the load since start up excluding the last minute. Therefore, it’s not technically accurate that the 1-minute load average only includes the last 60 seconds activity (since it still includes 37% activity from the past), but that includes mostly the last minute.

Is that what you expected?

Let’s return to our random number generation.

<code class="lang-bash">$ cat /proc/loadavg
1.00 0.69 0.35 2/124 1679
</code>

While technically not correct, this is how I simplify load averages to make it easier to reason about them.

In this case, the random number generation process is CPU bound, so the load average over the last minute is 1.00 or on average 1 running process.

Since there is only one CPU on my system, the CPU utilization is 100% since my CPU can run only one process at a time.

If I had two cores, my CPU usage would be 50% since my computer can run two processes at the same time. The load average of a computer with 2 cores that has a 100% CPU utilization would be 2.00.

You can see the number of your cores or CPUs in the top left corner of htop or by running nproc.

Because the load number also includes processes in uninterruptible states which don’t have much effect on CPU utilization, it’s not quite correct to infer CPU usage from load averages like I just did. This also explains why you may see high load averages but not much load on the CPU.

But there are tools like mpstat that can show the instantaneous CPU utilization.

<code class="lang-bash">$ sudo apt install sysstat -y
$ mpstat 1
Linux 4.4.0-47-generic (hostname)   12/03/2016      _x86_64_        (1 CPU)

10:16:20 PM  CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest  %gnice   %idle
10:16:21 PM  all    0.00    0.00  100.00    0.00    0.00    0.00    0.00    0.00    0.00    0.00
10:16:22 PM  all    0.00    0.00  100.00    0.00    0.00    0.00    0.00    0.00    0.00    0.00
10:16:23 PM  all    0.00    0.00  100.00    0.00    0.00    0.00    0.00    0.00    0.00    0.00
<span class="hljs-comment"># ...</span>
<span class="hljs-comment"># kill cat /dev/urandom</span>
<span class="hljs-comment"># ...</span>
10:17:00 PM  all    0.00    0.00    0.00    0.00    0.00    0.00    0.00    0.00    0.00  100.00
10:17:01 PM  all    1.00    0.00    0.00    2.00    0.00    0.00    0.00    0.00    0.00   97.00
10:17:02 PM  all    0.00    0.00    0.00    0.00    0.00    0.00    0.00    0.00    0.00  100.00
</code>

Why do we use load averages then?

<code class="lang-text">$ curl -s https://raw.githubusercontent.com/torvalds/linux/v4.8/kernel/sched/loadavg.c | head -n 7
/*
 * kernel/sched/loadavg.c
 *
 * This file contains the magic bits required to compute the global loadavg
 * figure. Its a silly number but people think its important. We go through
 * great pains to make it work on big machines and tickless kernels.
 */
</code>
Processes

In the top right corner, htop shows the total number of processes and how many of them are running. But it says Tasks not processes. Why?

Another name for a process is a task. The Linux kernel internally refers to processes as tasks. htop uses Tasks instead of Processes probably because it’s shorter and saves some screen space.

You can also see threads in htop. To toggle the visibility of threads, hit Shift+H on your keyboard. If you see Tasks: 23, 10 thr, it means it they are visible.

You can also see kernel threads with Shift+K. When they are visible, it’ll say Tasks: 23, 40 kthr.

Process ID / PID

Every time a new process is started it is assigned an identification number (ID) which is called process ID or PID for short.

If you run a program in the background (&) from bash, you will see the job number in square brackets and the PID.

<code class="lang-bash">$ sleep 1000 &amp;
[1] 12503
</code>

If you missed it, you can use the $! variable in bash that will expand to the last backgrounded process ID.

<code class="lang-bash">$ <span class="hljs-built_in">echo</span> $!
12503
</code>

Process ID is very useful. It can be used to see details about the process and to control it.

procfs is a pseudo file system that lets userland programs to get information from the kernel by reading files. It is usually mounted at /proc/ and to you it looks like a regular directory that you can browse with ls and cd.

All information related to a process is located at /proc/<pid>/.

<code class="lang-bash">$ ls /proc/12503
attr        coredump_filter  fdinfo     maps        ns             personality  smaps    task
auxv        cpuset           gid_map    mem         numa_maps      projid_map   stack    uid_map
cgroup      cwd              io         mountinfo   oom_adj        root         <span class="hljs-built_in">stat</span>     wchan
clear_refs  environ          limits     mounts      oom_score      schedstat    statm
cmdline     exe              loginuid   mountstats  oom_score_adj  sessionid    status
comm        fd               map_files  net         pagemap        setgroups    syscall
</code>

For example, /proc/<pid>/cmdline will give the command that was used to launch the process.

<code class="lang-bash">$ cat /proc/12503/cmdline
sleep1000$
</code>

Ugh, that’s not right. It turns out that the command is separated by the \0 byte.

<code class="lang-bash">$ od -c /proc/12503/cmdline
0000000   s   l   e   e   p  \0   1   0   0   0  \0
0000013
</code>

which we can replace with a space or newline

<code class="lang-bash">$ tr <span class="hljs-string">'\0'</span> <span class="hljs-string">'\n'</span> &lt; /proc/12503/cmdline
sleep
1000
$ strings /proc/12503/cmdline
sleep
1000
</code>

The process directory for a process can contain links! For instance, cwd points to the current working directory and exe is the executed binary.

<code class="lang-bash">$ ls <span class="hljs-_">-l</span> /proc/12503/{cwd,exe}
lrwxrwxrwx 1 ubuntu ubuntu 0 Jul  6 10:10 /proc/12503/cwd -&gt; /home/ubuntu
lrwxrwxrwx 1 ubuntu ubuntu 0 Jul  6 10:10 /proc/12503/exe -&gt; /bin/sleep
</code>

So this is how htop, top, ps and other diagnostic utilities get their information about the details of a process: they read it from /proc/<pid>/<file>.

Process tree

When you launch a new process, the process that launched the new process is called the parent process. The new process is now a child process for the parent process. These relationships form a tree structure.

If you hit F5 in htop, you can see the process hierarchy.

You can also use the f switch with ps

<code class="lang-bash">$ ps f
  PID TTY      STAT   TIME COMMAND
12472 pts/0    Ss     0:00 -bash
12684 pts/0    R+     0:00  \_ ps f
</code>

or pstree

<code class="lang-bash">$ pstree <span class="hljs-_">-a</span>
init
  ├─atd
  ├─cron
  ├─sshd -D
  │   └─sshd
  │       └─sshd
  │           └─bash
  │               └─pstree <span class="hljs-_">-a</span>
...
</code>

If you have ever wondered why you often see bash or sshd as parents of some of your processes, here’s why.

This is what happens when you run, say, date from your bash shell:

  • bash creates a new process that is a copy of itself (using a fork system call)
  • it will then load the program from the executable file /bin/date into memory (using an exec system call)
  • bash as the parent process will wait for its child to exit

So the /sbin/init with an ID of 1 was started at boot, which spawned the SSH daemon sshd. When you connect to the computer, sshd will spawn a process for the session which in turn will launch the bash shell.

I like to use this tree view in htop when I’m also interested in seeing all threads.

Process user

Each process is owned by a user. Users are represented with a numeric ID.

<code class="lang-bash">$ sleep 1000 &amp;
[1] 2045
$  grep Uid /proc/2045/status
Uid:    1000    1000    1000    1000
</code>

You can use the id command to find out the name for this user.

<code class="lang-bash">$ id 1000
uid=1000(ubuntu) gid=1000(ubuntu) groups=1000(ubuntu),4(adm)
</code>

It turns out that id gets this information from the /etc/passwd and /etc/group files.

<code class="lang-bash">$ strace <span class="hljs-_">-e</span> open id 1000
...
open(<span class="hljs-string">"/etc/nsswitch.conf"</span>, O_RDONLY|O_CLOEXEC) = 3
open(<span class="hljs-string">"/lib/x86_64-linux-gnu/libnss_compat.so.2"</span>, O_RDONLY|O_CLOEXEC) = 3
open(<span class="hljs-string">"/lib/x86_64-linux-gnu/libnss_files.so.2"</span>, O_RDONLY|O_CLOEXEC) = 3
open(<span class="hljs-string">"/etc/passwd"</span>, O_RDONLY|O_CLOEXEC) = 3
open(<span class="hljs-string">"/etc/group"</span>, O_RDONLY|O_CLOEXEC)  = 3
...
</code>

That’s because the Name Service Switch (NSS) configuration file /etc/nsswitch.conf says to use these files to resolve names.

<code class="lang-bash">$ head -n 9 /etc/nsswitch.conf
<span class="hljs-comment"># ...</span>
passwd:         compat
group:          compat
shadow:         compat
</code>

The value of compat (Compatibility mode) is the same as files except other special entries are permitted. files means that the database is stored in a file (loaded by libnss_files.so). But you could also store your users in other databases and services or use Lightweight Directory Access Protocol (LDAP), for example.

/etc/passwd and /etc/group are plain text files that map numeric IDs to human readable names.

<code class="lang-bash">$ cat /etc/passwd
root:x:0:0:root:/root:/bin/bash
daemon:x:1:1:daemon:/usr/sbin:/usr/sbin/nologin
ubuntu:x:1000:1000:Ubuntu:/home/ubuntu:/bin/bash
$ cat /etc/group
root:x:0:
adm:x:4:syslog,ubuntu
ubuntu:x:1000:
</code>

passwd? But where are the passwords?

They are actually in /etc/shadow.

<code class="lang-bash">$ sudo cat /etc/shadow
root:<span class="hljs-variable">$6</span><span class="hljs-variable">$mS9o0QBw</span><span class="hljs-variable">$P1ojPSTexV2PQ</span>.Z./rqzYex.k7TJE2nVeIVL0dql/:17126:0:99999:7:::
daemon:*:17109:0:99999:7:::
ubuntu:<span class="hljs-variable">$6</span><span class="hljs-variable">$GIfdqlb</span>/<span class="hljs-variable">$ms9ZoxfrUq455K6UbmHyOfz7DVf7TWaveyHcp</span>.:17126:0:99999:7:::
</code>

What’s that gibberish?

  • $6$ is the password hashing algorithm used, in this case it stands for sha512
  • followed by randomly generated salt to safeguard against rainbow table attacks
  • and finally the hash of your password + salt

When you run a program, it will be run as your user. Even if the executable file is not owned by you.

If you’d like to run a program as root or another user, that’s what sudo is for.

<code class="lang-bash">$ id
uid=1000(ubuntu) gid=1000(ubuntu) groups=1000(ubuntu),4(adm)
$ sudo id
uid=0(root) gid=0(root) groups=0(root)
$ sudo -u ubuntu id
uid=1000(ubuntu) gid=1000(ubuntu) groups=1000(ubuntu),4(adm)
$ sudo -u daemon id
uid=1(daemon) gid=1(daemon) groups=1(daemon)
</code>

But what if you want to log in as another user to launch various commands? Use sudo bash or sudo -u user bash. You’ll be able to use the shell as that user.

If you don’t like being asked for the root password all the time, you can simply disable it by adding your user to the /etc/sudoers file.

Let’s try it:

<code class="lang-bash">$ <span class="hljs-built_in">echo</span> <span class="hljs-string">"<span class="hljs-variable">$USER</span> ALL=(ALL) NOPASSWD: ALL"</span> &gt;&gt; /etc/sudoers
-bash: /etc/sudoers: Permission denied
</code>

Right, only root can do it.

<code class="lang-bash">$ sudo <span class="hljs-built_in">echo</span> <span class="hljs-string">"<span class="hljs-variable">$USER</span> ALL=(ALL) NOPASSWD: ALL"</span> &gt;&gt; /etc/sudoers
-bash: /etc/sudoers: Permission denied
</code>

WTF?

What happens here is that you are executing the echo command as root but appending the line to the /etc/sudoers file still as your user.

There are usually two ways around it:

  • echo "$USER ALL=(ALL) NOPASSWD: ALL" | sudo tee -a /etc/sudoers
  • sudo bash -c "echo '$USER ALL=(ALL) NOPASSWD: ALL' >> /etc/sudoers"

In the first case, tee -a will append its standard input to the file and we execute this command as root.

In the second case, we run bash as root and ask it to execute a command (-c) and the entire command will be executed as root. Note the tricky "/' business here which will dictate when the $USER variable will be expanded.

If you take a look at the /etc/sudoers file you will see that it begins with

<code>$ sudo head -n 3 /etc/sudoers
<span class="hljs-comment">#</span>
<span class="hljs-comment"># This file MUST be edited with the 'visudo' command as root.</span>
<span class="hljs-comment">#</span>
</code>

Uh oh.

It’s a helpful warning that says you should edit this file with sudo visudo. It will validate the contents of the file before saving and prevent you from making mistakes. If you don’t use visudo and make a mistake, it may lock you out from sudo. Which means that you won’t be able to correct your mistake!

Let’s say you want to change your password. You can do it with the passwd command. It will, as we saw earlier, save the password to the /etc/shadow file.

This file is sensitive and only writeable by root:

<code class="lang-bash">$ ls <span class="hljs-_">-l</span> /etc/shadow
-rw-r----- 1 root shadow 1122 Nov 27 18:52 /etc/shadow
</code>

So how is it possible that the passwd program which is executed by a regular user can write to a protected file?

I said earlier that when you launch a process, it is owned by you, even if the owner of the executable file is another user.

It turns out that you can change that behavior by changing file permissions. Let’s take a look.

<code class="lang-bash">$ ls <span class="hljs-_">-l</span> /usr/bin/passwd
-rwsr-xr-x 1 root root 54256 Mar 29  2016 /usr/bin/passwd
</code>

Notice the s letter. It was accomplished with sudo chmod u+s /usr/bin/passwd. It means that an executable will be launched as the the owner of the file which is root in this case.

You can find the so called setuid executables with find /bin -user root -perm -u+s.

Note that you can also do the same with group (g+s).

Process state

We are next going to look at the process state column in htop which is denoted simply with the letter S.

Here are the possible values:

<code class="lang-text">R    running or runnable (on run queue)
S    interruptible sleep (waiting for an event to complete)
D    uninterruptible sleep (usually IO)
Z    defunct ("zombie") process, terminated but not reaped by its parent
T    stopped by job control signal
t    stopped by debugger during the tracing
X    dead (should never be seen)
</code>

I’ve ordered them by how often I see them.

Note that when you run ps, it will also show substates like Ss, R+, Ss+, etc.

<code class="lang-bash">$ ps x
  PID TTY      STAT   TIME COMMAND
 1688 ?        Ss     0:00 /lib/systemd/systemd --user
 1689 ?        S      0:00 (sd-pam)
 1724 ?        S      0:01 sshd: vagrant@pts/0
 1725 pts/0    Ss     0:00 -bash
 2628 pts/0    R+     0:00 ps x
</code>
R – running or runnable (on run queue)

In this state, the process is currently running or on a run queue waiting to run.

What does it mean to run?

When you compile the source code of a program that you’ve written, that machine code is CPU instructions. It is saved to a file that can be executed. When you launch a program, it is loaded into memory and then the CPU executes these instructions.

Basically it means that the CPU is physically executing instructions. Or, in other words, crunching numbers.

S – interruptible sleep (waiting for an event to complete)

This means that the code instructions of this process are not being executed on the CPU. Instead, this process is waiting for something – an event or a condition – to happen. When an event happens, the kernel sets the state to running.

One example is the sleep utily from coreutils. It will sleep for a specific number of seconds (approximately).

<code class="lang-bash">$ sleep 1000 &amp;
[1] 10089
$ ps f
  PID TTY      STAT   TIME COMMAND
 3514 pts/1    Ss     0:00 -bash
10089 pts/1    S      0:00  \_ sleep 1000
10094 pts/1    R+     0:00  \_ ps f
</code>

So this is interruptible sleep. How can we interrupt it?

By sending a signal.

You can send a signal in htop by hitting F9 and then choosing one of the signals in the menu on the left.

Sending a signal is also known as kill. That’s because kill is a system call that can send a signal to a process. There is a program /bin/kill that can make this system call from userland and the default signal to use is TERM which will ask the process to terminate or in other words try to kill it.

Signal is just a number. Numbers are hard to remember so we give them names. Signal names are usually written in uppercase and may be prefixed with SIG.

Some commonly used signals are INT, KILL, STOP, CONT, HUP.

Let’s interrupt the sleep process by sending the INT aka SIGINT aka 2 aka Terminal interrupt signal.

<code class="lang-bash">$ <span class="hljs-built_in">kill</span> -INT 10089
[1]+  Interrupt               sleep 1000
</code>

This is also what happens When you hit CTRL+C on your keyboard. bash will the send the foreground process the SIGINT signal just like we just did manually.

By the way, in bash, kill is a built-in command, even though there is /bin/kill on most systems. Why? It allows processes to be killed if the limit on processes that you can create is reached.

These commands do the same thing:

  • kill -INT 10089
  • kill -2 10089
  • /bin/kill -2 10089

Another useful signal to know is SIGKILL aka 9. You may have used it to kill a process that didn’t respond to your frantic CTRL+C keyboard presses.

When you write a program, you can set up signal handlers that are functions that will be called when your process receives a signal. In other words, you can catch the signal and then do something, for example, clean up and shut down gracefully. So sending SIGINT (the user wants to interrupt a process) and SIGTERM (the user wants to terminate the process) does not mean that the process will be terminated.

You may have seen this exception when running Python scripts:

<code class="lang-bash">$ python -c <span class="hljs-string">'import sys; sys.stdin.read()'</span>
^C
Traceback (most recent call last):
  File <span class="hljs-string">"&lt;string&gt;"</span>, line 1, <span class="hljs-keyword">in</span> &lt;module&gt;
KeyboardInterrupt
</code>

You can tell the kernel to forcefully terminate a process and not give it a change to respond by sending the KILL signal:

<code class="lang-bash">$ sleep 1000 &amp;
[1] 2658
$ <span class="hljs-built_in">kill</span> -9 2658
[1]+  Killed                  sleep 1000
</code>
D – uninterruptible sleep (usually IO)

Unlike interruptible sleep, you cannot wake up this process with a signal. That is why many people dread seeing this state. You can’t kill such processes because killing means sending SIGKILL signals to processes.

This state is used if the process must wait without interruption or when the event is expected to occur quickly. Like reading to/from a disk. But that should only happen for a fraction of a second.

Here is a nice answer on StackOverflow.

Uninterruptable processes are USUALLY waiting for I/O following a page fault. The process/task cannot be interrupted in this state, because it can’t handle any signals; if it did, another page fault would happen and it would be back where it was.

In other words, this could happen if you are using Network File System (NFS) and it takes a while to read and write from it.

Or in my experience it can also mean that some of the processes are swapping a lot which means you have too little available memory.

Let’s try to get a process to go into uninterruptible sleep.

8.8.8.8 is a public DNS server provided by Google. They do not have an open NFS on there. But that won’t stop us.

<code class="lang-bash">$ sudo mount 8.8.8.8:/tmp /tmp &amp;
[1] 12646
$ sudo ps x | grep mount.nfs
12648 pts/1    D      0:00 /sbin/mount.nfs 8.8.8.8:/tmp /tmp -o rw
</code>

How to find out what’s causing this? strace!

Let’s strace the command in the output of ps above.

<code>$ sudo strace /sbin/mount.nfs 8.8.8.8:/tmp /tmp -o rw
...
mount(<span class="hljs-string">"8.8.8.8:/tmp"</span>, <span class="hljs-string">"/tmp"</span>, <span class="hljs-string">"nfs"</span>, 0, ...
</code>

So the mount system call is blocking the process.

If you’re wondering, you can run mount with an intr option to run as interruptible: sudo mount 8.8.8.8:/tmp /tmp -o intr.

Z – defunct (“zombie”) process, terminated but not reaped by its parent

When a process ends via exit and it still has child processes, the child processes become zombie processes.

  • If zombie processes exist for a short time, it is perfectly normal
  • Zombie processes that exist for a long time may indicate a bug in a program
  • Zombie processes don’t consume memory, just a process ID
  • You can’t kill a zombie process
  • You can ask nicely the parent process to reap the zombies (the SIGCHLD signal)
  • You can kill the zombie’s parent process to get rid of the parent and its zombies

I am going to write some C code to show this.

Here is our program.

<code class="lang-c"><span class="hljs-meta">#<span class="hljs-meta-keyword">include</span> <span class="hljs-meta-string">&lt;stdio.h&gt;</span></span>
<span class="hljs-meta">#<span class="hljs-meta-keyword">include</span> <span class="hljs-meta-string">&lt;stdlib.h&gt;</span></span>
<span class="hljs-meta">#<span class="hljs-meta-keyword">include</span> <span class="hljs-meta-string">&lt;unistd.h&gt;</span></span>

<span class="hljs-function"><span class="hljs-keyword">int</span> <span class="hljs-title">main</span><span class="hljs-params">()</span> </span>{
  <span class="hljs-built_in">printf</span>(<span class="hljs-string">"Running\n"</span>);

  <span class="hljs-keyword">int</span> pid = fork();

  <span class="hljs-keyword">if</span> (pid == <span class="hljs-number">0</span>) {
    <span class="hljs-built_in">printf</span>(<span class="hljs-string">"I am the child process\n"</span>);
    <span class="hljs-built_in">printf</span>(<span class="hljs-string">"The child process is exiting now\n"</span>);
    <span class="hljs-built_in">exit</span>(<span class="hljs-number">0</span>);
  } <span class="hljs-keyword">else</span> {
    <span class="hljs-built_in">printf</span>(<span class="hljs-string">"I am the parent process\n"</span>);
    <span class="hljs-built_in">printf</span>(<span class="hljs-string">"The parent process is sleeping now\n"</span>);
    sleep(<span class="hljs-number">20</span>);
    <span class="hljs-built_in">printf</span>(<span class="hljs-string">"The parent process is finished\n"</span>);
  }

  <span class="hljs-keyword">return</span> <span class="hljs-number">0</span>;
}
</code>

Let’s install the GNU C Compiler (GCC).

<code class="lang-bash">sudo apt install -y gcc
</code>

Compile it and then run it

<code class="lang-bash">gcc zombie.c -o zombie
./zombie
</code>

Look at the process tree

<code class="lang-bash">$ ps f
  PID TTY      STAT   TIME COMMAND
 3514 pts/1    Ss     0:00 -bash
 7911 pts/1    S+     0:00  \_ ./zombie
 7912 pts/1    Z+     0:00      \_ [zombie] &lt;defunct&gt;
 1317 pts/0    Ss     0:00 -bash
 7913 pts/0    R+     0:00  \_ ps f
</code>

We got our zombie!

When the parent process is done, the zombie is gone.

<code class="lang-bash">$ ps f
  PID TTY      STAT   TIME COMMAND
 3514 pts/1    Ss+    0:00 -bash
 1317 pts/0    Ss     0:00 -bash
 7914 pts/0    R+     0:00  \_ ps f
</code>

If you replaced sleep(20) with while (true) ; then the zombie would be gone right away.

With exit, all of the memory and resources associated with it are deallocated so they can be used by other processes.

Why keep the zombie processes around then?

The parent process has the option to find out its child process exit code (in a signal handler) with the wait system call. If a process is sleeping, then it needs to wait for it to wake up.

Why not simply forcefully wake it up and kill it? For the same reason, you don’t toss your child in the trash when you’re tired of it. Bad things could happen.

T – stopped by job control signal

I have opened two terminal windows and I can look at my user’s processes with ps u.

<code class="lang-bash">$ ps u
USER       PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
ubuntu    1317  0.0  0.9  21420  4992 pts/0    Ss+  Jun07   0:00 -bash
ubuntu    3514  1.5  1.0  21420  5196 pts/1    Ss   07:28   0:00 -bash
ubuntu    3528  0.0  0.6  36084  3316 pts/1    R+   07:28   0:00 ps u
</code>

I will omit the -bash and ps u processes from the output below.

Now run cat /dev/urandom > /dev/null in one terminal window. Its state is R+ which means that it is running.

<code class="lang-bash">$ ps u
USER       PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
ubuntu    3540  103  0.1   6168   688 pts/1    R+   07:29   0:04 cat /dev/urandom
</code>

Press CTRL+Z to stop the process.

<code class="lang-bash">$ <span class="hljs-comment"># CTRL+Z</span>
[1]+  Stopped                 cat /dev/urandom &gt; /dev/null
$ ps aux
USER       PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
ubuntu    3540 86.8  0.1   6168   688 pts/1    T    07:29   0:15 cat /dev/urandom
</code>

Its state is now T.

Run fg in the first terminal to resume it.

Another way to stop a process like this is to send the STOP signal with kill to the process. To resume the execution of the process, you can use the CONT signal.

t – stopped by debugger during the tracing

First, install the GNU Debugger (gdb)

<code class="lang-bash">sudo apt install -y gdb
</code>

Run a program that will listen for incoming network connections on port 1234.

<code class="lang-bash">$ nc <span class="hljs-_">-l</span> 1234 &amp;
[1] 3905
</code>

It is sleeping meaning it is waiting for data from the network.

<code class="lang-bash">$ ps u
USER       PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
ubuntu    3905  0.0  0.1   9184   896 pts/0    S    07:41   0:00 nc <span class="hljs-_">-l</span> 1234
</code>

Run the debugger and attach it to the process with ID 3905.

<code class="lang-bash">sudo gdb -p 3905
</code>

You will see that the state is t which means that this process is being traced in the debugger.

<code class="lang-bash">$ ps u
USER       PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
ubuntu    3905  0.0  0.1   9184   896 pts/0    t    07:41   0:00 nc <span class="hljs-_">-l</span> 1234
</code>
Process time

Linux is a multitasking operating system which means that even when you have a single CPU, you can run several processes at the same time. You can connect to your server via SSH and look at the output of htop while your web server is delivering the content of your blog to your readers over the internet.

How is that possible when a single CPU can only execute one instruction at a time?

The answer is time sharing.

One process runs for a bit of time, then it is suspended while the other processes waiting to run take turns running for a while. The bit of time a process runs is called the time slice.

The time slice is usually a few milliseconds so you don’t really notice it that much when your system is not under high load. (It’d be really interesting to find out how long time slices usually are in Linux.)

This should help explain why the load average is the average number of running processes. If you have just one core and the load average is 1.0, the CPU has been utilized at 100%. If the load average is higher than 1.0, it means that the number of processes wanting to run is higher than the CPU can run so you may experience slow downs or delays. If the load is lower than 1.0, it means the CPU is sometimes idleing and not doing anything.

This should also give you a clue why sometimes the running time of a process that’s been running for 10 seconds is higher or lower than exactly 10 seconds.

Process niceness and priority

When you have more tasks to run than the number of available CPU cores, you somehow have to decide which tasks to run next and which ones to keep waiting. This is what the task scheduler is responsible for.

The scheduler in the Linux kernel is reponsible for choosing which process on a run queue to pick next and it depends on the scheduler algorithm used in the kernel.

You can’t generally influence the scheduler but you can let it know which processes are more important to you and the scheduler may take it into account.

Niceness (NI) is user-space priority to processes, ranging from -20 which is the highest priority to 19 which is the lowest priority. It can be confusing but you can think that a nice process yields to a less nice process. So the nicer a process is, the more it yields.

From what I’ve pieced together by reading StackOverflow and other sites, a niceness level increase by 1 should yield a 10% more CPU time to the process.

The priority (PRI) is the kernel-space priority that the Linux kernel is using. Priorities range from 0 to 139 and the range from 0 to 99 is real time and 100 to 139 for users.

You can change the nicesness and the kernel takes it into account but you cannot change the priority.

The relation between the nice value and priority is:

<code>PR = 20 + NI
</code>

so the value of PR = 20 + (-20 to +19) is 0 to 39 that maps 100 to 139.

You can set the niceness of a process before launching it.

<code>nice -n niceness program
</code>

Change the nicencess when a program is already running with renice.

<code>renice -n niceness -p PID
</code>

Here is what the CPU usage colors mean:

  • Blue: Low priority threads (nice > 0)
  • Green: Normal priority threads
  • Red: Kernel threads

http://askubuntu.com/questions/656771/process-niceness-vs-priority

Memory usage – VIRT/RES/SHR/MEM

A process has the illusion of being the only one in memory. This is accomplished by using virtual memory.

A process does not have direct access to the physical memory. Instead, it has its own virtual address space and the kernel translates the virtual memory addresses to physical memory or can map some of it to disk. This is why it can look like processes use more memory than you have installed on your computer.

The point I want to make here is that it is not very straightforward to figure out how much memory a process takes up. Do you also want to count the shared libraries or disk mapped memory? But the kernel provides and htop shows some information that can help you estimate memory usage.

Here is what the memory usage colors mean:

  • Green: Used memory
  • Blue: Buffers
  • Orange: Cache
VIRT/VSZ – Virtual Image

The total amount of virtual memory used by the task. It includes all code, data and shared libraries plus pages that have been swapped out and pages that have been mapped but not used.

VIRT is virtual memory usage. It includes everything, including memory mapped files.

If an application requests 1 GB of memory but uses only 1 MB, then VIRT will report 1 GB. If it mmaps a 1 GB file and never uses it, VIRT will also report 1 GB.

Most of the time, this is not a useful number.

RES/RSS – Resident size

The non-swapped physical memory a task has used.

RES is resident memory usage i.e. what’s currently in the physical memory.

While RES can be a better indicator of how much memory a process is using than VIRT, keep in mind that

  • this does not include the swapped out memory
  • some of the memory may be shared with other processes

If a process uses 1 GB of memory and it calls fork(), the result of forking will be two processes whose RES is both 1 GB but only 1 GB will actually be used since Linux uses copy-on-write.

SHR – Shared Mem size

The amount of shared memory used by a task.
It simply reflects memory that could be potentially shared with other processes.

<code class="lang-c"><span class="hljs-meta">#<span class="hljs-meta-keyword">include</span> <span class="hljs-meta-string">&lt;stdio.h&gt;</span></span>
<span class="hljs-meta">#<span class="hljs-meta-keyword">include</span> <span class="hljs-meta-string">&lt;stdlib.h&gt;</span></span>
<span class="hljs-meta">#<span class="hljs-meta-keyword">include</span> <span class="hljs-meta-string">&lt;unistd.h&gt;</span></span>

<span class="hljs-function"><span class="hljs-keyword">int</span> <span class="hljs-title">main</span><span class="hljs-params">()</span> </span>{
  <span class="hljs-built_in">printf</span>(<span class="hljs-string">"Started\n"</span>);
  sleep(<span class="hljs-number">10</span>);

  <span class="hljs-keyword">size_t</span> memory = <span class="hljs-number">10</span> * <span class="hljs-number">1024</span> * <span class="hljs-number">1024</span>; <span class="hljs-comment">// 10 MB</span>
  <span class="hljs-keyword">char</span>* buffer = <span class="hljs-built_in">malloc</span>(memory);
  <span class="hljs-built_in">printf</span>(<span class="hljs-string">"Allocated 10M\n"</span>);
  sleep(<span class="hljs-number">10</span>);

  <span class="hljs-keyword">for</span> (<span class="hljs-keyword">size_t</span> i = <span class="hljs-number">0</span>; i &lt; memory/<span class="hljs-number">2</span>; i++)
    buffer[i] = <span class="hljs-number">42</span>;
  <span class="hljs-built_in">printf</span>(<span class="hljs-string">"Used 5M\n"</span>);
  sleep(<span class="hljs-number">10</span>);

  <span class="hljs-keyword">int</span> pid = fork();
  <span class="hljs-built_in">printf</span>(<span class="hljs-string">"Forked\n"</span>);
  sleep(<span class="hljs-number">10</span>);

  <span class="hljs-keyword">if</span> (pid != <span class="hljs-number">0</span>) {
    <span class="hljs-keyword">for</span> (<span class="hljs-keyword">size_t</span> i = memory/<span class="hljs-number">2</span>; i &lt; memory/<span class="hljs-number">2</span> + memory/<span class="hljs-number">5</span>; i++)
      buffer[i] = <span class="hljs-number">42</span>;
    <span class="hljs-built_in">printf</span>(<span class="hljs-string">"Child used extra 2M\n"</span>);
  }
  sleep(<span class="hljs-number">10</span>);

  <span class="hljs-keyword">return</span> <span class="hljs-number">0</span>;
}
</code>
<code class="lang-bash">fallocate <span class="hljs-_">-l</span> 10G
gcc -std=c99 mem.c -o mem
./mem
</code>
<code>Process  Message               VIRT  RES SHR
main     Started               4200  680 604
main     Allocated 10M        14444  680 604
main     Used 5M              14444 6168 1116
main     Forked               14444 6168 1116
child    Forked               14444 5216 0
main     Child used extra 2M        8252 1116
child    Child used extra 2M        5216 0
</code>

TODO: I should finish this.

MEM% – Memory usage

A task’s currently used share of available physical memory.

This is RES divided by the total RAM you have.

If RES is 400M and you have 8 gigabytes of RAM, MEM% will be 400/8192*100 = 4.88%.

Processes

I launched a Digital Ocean droplet with Ubuntu Server.

What are the processes that are started at boot?

Do you actually need them?

Here are my research notes on the processes that are run at startup on a fresh Digital Ocean droplet with Ubuntu Server 16.04.1 LTS x64.

Before

/sbin/init

The /sbin/init program (also called init) coordinates the rest of the boot process and configures the environment for the user.

When the init command starts, it becomes the parent or grandparent of all of the processes that start up automatically on the system.

Is it systemd?

<code>$ dpkg -S /sbin/init
systemd-sysv: /sbin/init
</code>

Yes, it is.

What happens if you kill it?

Nothing.

/lib/systemd/systemd-journald

systemd-journald is a system service that collects and stores logging data. It creates and maintains structured, indexed journals based on logging information that is received from a variety of sources.

In other words:

One of the main changes in journald was to replace simple plain text log files with a special file format optimized for log messages. This file format allows system administrators to access relevant messages more efficiently. It also brings some of the power of database-driven centralized logging implementations to individual systems.

You are supposed to use the journalctl command to query log files.

  • journalctl _COMM=sshd logs by sshd
  • journalctl _COMM=sshd -o json-pretty logs by sshd in JSON
  • journalctl --since "2015-01-10" --until "2015-01-11 03:00"
  • journalctl --since 09:00 --until "1 hour ago"
  • journalctl --since yesterday
  • journalctl -b logs since boot
  • journalctl -f to follow logs
  • journalctl --disk-usage
  • journalctl --vacuum-size=1G

Pretty cool.

It looks like it is not possible to remove or disable this service, you can only turn off logging.

/sbin/lvmetad -f

The lvmetad daemon caches LVM metadata, so that LVM commands can read metadata without scanning disks.

Metadata caching can be an advantage because scanning disks is time consuming and may interfere with the normal work of the system and disks.

But what is LVM (Logical Volume Management)?

You can think of LVM as “dynamic partitions”, meaning that you can create/resize/delete LVM “partitions” (they’re called “Logical Volumes” in LVM-speak) from the command line while your Linux system is running: no need to reboot the system to make the kernel aware of the newly-created or resized partitions.

It sounds like you should keep it if you are using LVM.

<code class="lang-bash">$ lvscan
$ sudo apt remove lvm2 -y --purge
</code>
/lib/systemd/udevd

systemd-udevd listens to kernel uevents. For every event, systemd-udevd executes matching instructions specified in udev rules.

udev is a device manager for the Linux kernel. As the successor of devfsd and hotplug, udev primarily manages device nodes in the /dev directory.

So this service manages /dev.

I am not sure if I need it running on a virtual server.

/lib/systemd/timesyncd

systemd-timesyncd is a system service that may be used to synchronize the local system clock with a remote Network Time Protocol server.

So this replaces ntpd.

<code>$ timedatectl status
      Local time: Fri 2016-08-26 11:38:21 UTC
  Universal time: Fri 2016-08-26 11:38:21 UTC
        RTC time: Fri 2016-08-26 11:38:20
       Time zone: Etc/UTC (UTC, +0000)
 Network time on: yes
NTP synchronized: yes
 RTC <span class="hljs-keyword">in</span> <span class="hljs-built_in">local</span> TZ: no
</code>

If we take a look at the open ports on this server:

<code>$ sudo netstat -nlput
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      2178/sshd
tcp6       0      0 :::22                   :::*                    LISTEN      2178/sshd
</code>

Lovely!

Previously on Ubuntu 14.04 it was

<code>$ sudo apt-get install ntp -y
$ sudo netstat -nlput
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      1380/sshd
tcp6       0      0 :::22                   :::*                    LISTEN      1380/sshd
udp        0      0 10.19.0.6:123           0.0.0.0:*                           2377/ntpd
udp        0      0 139.59.256.256:123      0.0.0.0:*                           2377/ntpd
udp        0      0 127.0.0.1:123           0.0.0.0:*                           2377/ntpd
udp        0      0 0.0.0.0:123             0.0.0.0:*                           2377/ntpd
udp6       0      0 fe80::601:6aff:fxxx:123 :::*                                2377/ntpd
udp6       0      0 ::1:123                 :::*                                2377/ntpd
udp6       0      0 :::123                  :::*                                2377/ntpd
</code>

Ugh.

/usr/sbin/atd -f

atd – run jobs queued for later execution. atd runs jobs queued by at.

at and batch read commands from standard input or a specified file which are to be executed at a later time

Unlike cron, which schedules jobs that are repeated periodically, at runs a job at a specific time once.

<code class="lang-bash">$ <span class="hljs-built_in">echo</span> <span class="hljs-string">"touch /tmp/yolo.txt"</span> | at now + 1 minute
job 1 at Fri Aug 26 10:44:00 2016
$ atq
1       Fri Aug 26 10:44:00 2016 a root
$ sleep 60 &amp;&amp; ls /tmp/yolo.txt
/tmp/yolo.txt
</code>

I’ve actually never used it until now.

<code class="lang-bash">sudo apt remove at -y --purge
</code>
/usr/lib/snapd/snapd

Snappy Ubuntu Core is a new rendition of Ubuntu with transactional updates – a minimal server image with the same libraries as today’s Ubuntu, but applications are provided through a simpler mechanism.

What?

Developers from multiple Linux distributions and companies today announced collaboration on the “snap” universal Linux package format, enabling a single binary package to work perfectly and securely on any Linux desktop, server, cloud or device.

Apparently it is a simplified deb package and you’re supposted to bundle all dependencies in a single snap that you can distribute.

I’ve never used snappy to deploy or distribute applications on servers.

<code class="lang-bash">sudo apt remove snapd -y --purge
</code>
/usr/bin/dbus-daemon

In computing, D-Bus or DBus is an inter-process communication (IPC) and remote procedure call (RPC) mechanism that allows communication between multiple computer programs (that is, processes) concurrently running on the same machine

My understanding is that you need it for desktop environments but on a server to run web apps?

<code class="lang-bash">sudo apt remove dbus -y --purge
</code>

I wonder what time it is and whether it is being synchronized with NTP?

<code>$ timedatectl status
Failed to create bus connection: No such file or directory
</code>

Oops. Should probably keep this.

/lib/systemd/systemd-logind

systemd-logind is a system service that manages user logins.

/usr/sbin/cron -f

cron – daemon to execute scheduled commands (Vixie Cron)

-f Stay in foreground mode, don’t daemonize.

You can schedule tasks to run periodically with cron.

Use crontab -e to edit the configuration for your user or on Ubuntu I tend to use the /etc/cron.hourly, /etc/cron.daily, etc. directories.

You can see the log files with

  • grep cron /var/log/syslog or
  • journalctl _COMM=cron or even
  • journalctl _COMM=cron --since="date" --until="date"

You’ll probably want to keep cron.

But if you don’t, then you should stop and disable the service:

<code>sudo systemctl stop cron
sudo systemctl <span class="hljs-built_in">disable</span> cron
</code>

Because otherwise when trying to remove it with apt remove cron it will try to install postfix!

<code>$ sudo apt remove cron
The following packages will be REMOVED:
  cron
The following NEW packages will be installed:
  anacron bcron bcron-run fgetty libbg1 libbg1-doc postfix runit ssl-cert ucspi-unix
</code>

It looks like cron needs a mail transport agent (MTA) to send emails.

<code>$ apt show cron
Package: cron
Version: 3.0pl1-128ubuntu2
...
Suggests: anacron (&gt;= 2.0-1), logrotate, checksecurity, exim4 | postfix | mail-transport-agent

$ apt depends cron
cron
  ...
  Suggests: anacron (&gt;= 2.0-1)
  Suggests: logrotate
  Suggests: checksecurity
 |Suggests: exim4
 |Suggests: postfix
  Suggests: &lt;mail-transport-agent&gt;
    ...
    exim4-daemon-heavy
    postfix
</code>
/usr/sbin/rsyslogd -n

Rsyslogd is a system utility providing support for message logging.

In another words, it’s what populates log files in /var/log/ like /var/log/auth.log for authentication messages like SSH login attempts.

The configuration files are in /etc/rsyslog.d.

You can also configure rsyslogd to send log files to a remote server and implement centralized logging.

You can use the logger command to log messages to /var/log/syslog in background scripts such as those that are run at boot.

<code class="lang-bash"><span class="hljs-meta">#!/bin/bash
</span>
logger Starting doing something
<span class="hljs-comment"># NFS, get IPs, etc.</span>
logger Done doing something
</code>

Right, but we already have systemd-journald running. Do we need rsyslogd as well?

Rsyslog and Journal, the two logging applications present on your system, have several distinctive features that make them suitable for specific use cases. In many situations it is useful to combine their capabilities, for example to create structured messages and store them in a file database. A communication interface needed for this cooperation is provided by input and output modules on the side of Rsyslog and by the Journal’s communication socket.

So, maybe? I am going to keep it just in case.

/usr/sbin/acpid

acpid – Advanced Configuration and Power Interface event daemon

acpid is designed to notify user-space programs of ACPI events. acpid should be started during the system boot, and will run as a background process, by default.

In computing, the Advanced Configuration and Power Interface (ACPI) specification provides an open standard that operating systems can use to perform discovery and configuration of computer hardware components, to perform power management by, for example, putting unused components to sleep, and to do status monitoring.

But I’m on a virtual server that I don’t intend to suspend/resume.

I am going to remove it for fun and see what happens.

<code class="lang-bash">sudo apt remove acpid -y --purge
</code>

I was able to successfully reboot the droplet but after halt Digital Ocean thought it was still on so I had to Power Off using the web interface.

So I should probably keep this.

/usr/bin/lxcfs /var/lib/lxcfs/

Lxcfs is a fuse filesystem mainly designed for use by lxc containers. On a Ubuntu 15.04 system, it will be used by default to provide two things: first, a virtualized view of some /proc files; and secondly, filtered access to the host’s cgroup filesystems.

In summary, on a 15.04 host, you can now create a container the usual way, lxc-create … The resulting container will have “correct” results for uptime, top, etc.

It’s basically a userspace workaround to changes which were deemed unreasonable to do in the kernel. It makes containers feel much more like separate systems than they would without it.

Not using LXC containers? You can remove it with

<code class="lang-bash">sudo apt remove lxcfs -y --purge
</code>
/usr/lib/accountservice/accounts-daemon

The AccountsService package provides a set of D-Bus interfaces for querying and manipulating user account information and an implementation of these interfaces based on the usermod(8), useradd(8) and userdel(8) commands.

When I removed DBus it broke timedatectl, I wonder what removing this service will break.

<code class="lang-bash">sudo apt remove accountsservice -y --purge
</code>

Time will tell.

/sbin/mdadm

mdadm is a Linux utility used to manage and monitor software RAID devices.

The name is derived from the md (multiple device) device nodes it administers or manages, and it replaced a previous utility mdctl. The original name was “Mirror Disk”, but was changed as the functionality increased.

RAID is a method of using multiple hard drives to act as one. There are two purposes of RAID: 1) Expand drive capacity: RAID 0. If you have 2 x 500 GB HDD then total space become 1 TB. 2) Prevent data loss in case of drive failure: For example RAID 1, RAID 5, RAID 6, and RAID 10.

You can remove it with

<code class="lang-bash">sudo apt remove mdadm -y --purge
</code>
/usr/lib/policykit-1/polkitd --no-debug

polkitd — PolicyKit daemon

polkit – Authorization Framework

My understanding is that this is like fine-grained sudo. You can allow non privilegded users to do certain actions as root. For instance, reboot your computer when you’re running Linux on a desktop computer.

But I’m running a server. You can remove it with

<code class="lang-bash">sudo apt remove policykit-1 -y --purge
</code>

Still wondering if this breaks something.

/usr/sbin/sshd -D

sshd (OpenSSH Daemon) is the daemon program for ssh.

-D When this option is specified, sshd will not detach and does not become a daemon. This allows easy monitoring of sshd.

/sbin/iscsid

iscsid is the daemon (system service) that runs in the background, acting on iSCSI configuration, and managing the connections. From its manpage:

The iscsid implements the control path of iSCSI protocol, plus some management facilities. For example, the daemon could be configured to automatically re-start discovery at startup, based on the contents of persistent iSCSI database.

http://unix.stackexchange.com/questions/216239/iscsi-vs-iscsid-services

I had never heard of iSCSI:

In computing, iSCSI (Listeni/aɪˈskʌzi/ eye-skuz-ee) is an acronym for Internet Small Computer Systems Interface, an Internet Protocol (IP)-based storage networking standard for linking data storage facilities.

By carrying SCSI commands over IP networks, iSCSI is used to facilitate data transfers over intranets and to manage storage over long distances. iSCSI can be used to transmit data over local area networks (LANs), wide area networks (WANs), or the Internet and can enable location-independent data storage and retrieval.

The protocol allows clients (called initiators) to send SCSI commands (CDBs) to SCSI storage devices (targets) on remote servers. It is a storage area network (SAN) protocol, allowing organizations to consolidate storage into data center storage arrays while providing hosts (such as database and web servers) with the illusion of locally attached disks.

You can remove it with

<code class="lang-bash">sudo apt remove open-iscsi -y --purge
</code>
/sbin/agetty --noclear tty1 linux

agetty – alternative Linux getty

getty, short for “get tty”, is a Unix program running on a host computer that manages physical or virtual terminals (TTYs). When it detects a connection, it prompts for a username and runs the ‘login’ program to authenticate the user.

Originally, on traditional Unix systems, getty handled connections to serial terminals (often Teletype machines) connected to a host computer. The tty part of the name stands for Teletype, but has come to mean any type of text terminal.

This allows you to log in when you are physically at the server. In Digital Ocean, you can click on Console in the droplet details and you will be able to interact with this terminal in your browser (it’s a VNC connection I think).

In the old days, you’d see a bunch of ttys started a system boot (configured in /etc/inittab), but nowadays they are spun up on demand by systemd.

For fun, I removed this configuration file that launches and generates agetty:

<code class="lang-bash">sudo rm /etc/systemd/system/getty.target.wants/getty@tty1.service
sudo rm /lib/systemd/system/getty@.service
</code>

When I rebooted the server, I could still connect to it via SSH but I was no longer able to log in from the Digital Ocean web console.

Screenshot of htop

sshd: root@pts/0 & -bash & htop

sshd: root@pts/0 means that there has been an SSH session established for the user root at the #0 pseudoterminal (pts). A pseudoterminal emulates a real text terminal.

bash is the shell that I am using.

Why is there a dash at the beginning? Reddit user hirnbrot helpfully explained it:

There’s a dash at the beginning because launching it as “-bash” will make it a login shell. A login shell is one whose first character of argument zero is a -, or one started with the –login option. This will then cause it to read a different set of configuration files.

htop is an interactive process viewer tool that is running in the screenshot.

After
<code class="lang-bash">sudo apt remove lvm2 -y --purge
sudo apt remove at -y --purge
sudo apt remove snapd -y --purge
sudo apt remove lxcfs -y --purge
sudo apt remove mdadm -y --purge
sudo apt remove open-iscsi -y --purge
sudo apt remove accountsservice -y --purge
sudo apt remove policykit-1 -y --purge
</code>

Extreme edition:

<code class="lang-bash">sudo apt remove dbus -y --purge
sudo apt remove rsyslog -y --purge
sudo apt remove acpid -y --purge
sudo systemctl stop cron &amp;&amp; sudo systemctl <span class="hljs-built_in">disable</span> cron
sudo rm /etc/systemd/system/getty.target.wants/getty@tty1.service
sudo rm /lib/systemd/system/getty@.service
</code>

I followed the instructions in my blog post about unattended installation of WordPress on Ubuntu Server and it works.

Here’s nginx, PHP7 and MySQL.

Appendix
Source code

Sometimes looking at strace is not enough.

Another way to figure out what a program does is to look at its source code.

First, I need to find out where to start looking.

<code class="lang-bash">$ <span class="hljs-built_in">which</span> uptime
/usr/bin/uptime
$ dpkg -S /usr/bin/uptime
procps: /usr/bin/uptime
</code>

Here we find out that uptime is actually located at /usr/bin/uptime and that on Ubuntu it is part of the procps package.

You can then go to packages.ubuntu.com and search for the package there.

Here is the page for procps: http://packages.ubuntu.com/source/xenial/procps

If you scroll to the bottom of the page, you’ll see links to the source code repositories:

File descriptors and redirection

When you want to redirect standard error (stderr) to standard output (stdout), is it 2&>1 or 2>&1?

You can memorize where the ampersand & goes by knowing that echo something > file will write something to the file file. It’s the same as echo something 1> file. Now, echo something 2> file will write the stderr output to file.

If you write echo something 2>1, it means that you redirect stderr to a file with the name 1. Add spaces to make it more clear: echo something 2> 1.

If you add & before 1, it means that 1 is not a filename but the stream ID. So it’s echo something 2>&1.

Colors in PuTTY

If you have missing elements in htop when you are using PuTTY, here is how to solve it.

  • Right click on the title bar
  • Click Change settings…
  • Go to Window -> Colours
  • Select the Both radio button
  • Click Apply

Shell in C

Let’s write a very simple shell in C that demonstrates the use of fork/exec/wait system calls. Here’s the program shell.c.

<code class="lang-c"><span class="hljs-meta">#<span class="hljs-meta-keyword">include</span> <span class="hljs-meta-string">&lt;stdio.h&gt;</span></span>
<span class="hljs-meta">#<span class="hljs-meta-keyword">include</span> <span class="hljs-meta-string">&lt;stdlib.h&gt;</span></span>
<span class="hljs-meta">#<span class="hljs-meta-keyword">include</span> <span class="hljs-meta-string">&lt;unistd.h&gt;</span></span>
<span class="hljs-meta">#<span class="hljs-meta-keyword">include</span> <span class="hljs-meta-string">&lt;string.h&gt;</span></span>
<span class="hljs-meta">#<span class="hljs-meta-keyword">include</span> <span class="hljs-meta-string">&lt;sys/wait.h&gt;</span></span>

<span class="hljs-function"><span class="hljs-keyword">int</span> <span class="hljs-title">main</span><span class="hljs-params">()</span> </span>{
  <span class="hljs-built_in">printf</span>(<span class="hljs-string">"Welcome to my shell\n"</span>);
  <span class="hljs-keyword">char</span> line[<span class="hljs-number">1024</span>];

  <span class="hljs-keyword">while</span> (<span class="hljs-number">1</span>) {
    <span class="hljs-built_in">printf</span>(<span class="hljs-string">"&gt; "</span>);

    fgets(line, <span class="hljs-keyword">sizeof</span>(line), <span class="hljs-built_in">stdin</span>);
    line[<span class="hljs-built_in">strlen</span>(line)<span class="hljs-number">-1</span>] = <span class="hljs-string">'\0'</span>; <span class="hljs-comment">// strip \n</span>
    <span class="hljs-keyword">if</span> (<span class="hljs-built_in">strcmp</span>(line, <span class="hljs-string">"exit"</span>) == <span class="hljs-number">0</span>) <span class="hljs-comment">// shell built-in</span>
      <span class="hljs-keyword">break</span>;

    <span class="hljs-keyword">int</span> pid = fork();
    <span class="hljs-keyword">if</span> (pid == <span class="hljs-number">0</span>) {
        <span class="hljs-built_in">printf</span>(<span class="hljs-string">"Executing: %s\n"</span>, line);
        <span class="hljs-keyword">if</span> (execlp(line, <span class="hljs-string">""</span>, <span class="hljs-literal">NULL</span>) == <span class="hljs-number">-1</span>) {
          <span class="hljs-built_in">printf</span>(<span class="hljs-string">"ERROR!\n"</span>);
          <span class="hljs-built_in">exit</span>(<span class="hljs-number">1</span>);
        }
    } <span class="hljs-keyword">else</span> <span class="hljs-keyword">if</span> (pid &gt; <span class="hljs-number">0</span>) {
        <span class="hljs-keyword">int</span> status;
        waitpid(pid, &amp;status, <span class="hljs-number">0</span>);
        <span class="hljs-built_in">printf</span>(<span class="hljs-string">"Child exited with %d\n"</span>, WEXITSTATUS(status));
    } <span class="hljs-keyword">else</span> {
        <span class="hljs-built_in">printf</span>(<span class="hljs-string">"ERROR!\n"</span>);
        <span class="hljs-keyword">break</span>;
    }
  }

  <span class="hljs-keyword">return</span> <span class="hljs-number">0</span>;
}
</code>

Compile the program.

<code class="lang-bash">gcc shell.c -o shell
</code>

And run it.

<code>$ ./shell
Welcome to my shell
&gt; date
Executing: date
Thu Dec  1 14:10:59 UTC 2016
Child exited with 0
&gt; <span class="hljs-literal">true</span>
Executing: <span class="hljs-literal">true</span>
Child exited with 0
&gt; <span class="hljs-literal">false</span>
Executing: <span class="hljs-literal">false</span>
Child exited with 1
&gt; <span class="hljs-built_in">exit</span>
</code>

Have you ever wondered that when you launch a process in the background you only see that it has exited only after a while when you hit Enter?

<code class="lang-bash">$ sleep 1 &amp;
[1] 11686
$ <span class="hljs-comment"># press Enter</span>
[1]+  Done                    sleep 1
</code>

That’s because the shell is waiting for your input. Only when you enter a command does it check for the status of the background processes and show if they’ve been terminated.

TODO

Here is what I’d like to find out more about.

  • process state substatuses (Ss, Ss+, R+, etc.)
  • kernel threads
  • /dev/pts
  • more about memory (CODE, DATA, SWAP)
  • figure out time slices length
  • Linux scheduler algorithm
  • pinning proceses to cores
  • write about manual pages
  • cpu/memory colors in bars
  • process ID limit & fork bomb
  • lsof, ionice, schedtool
Updates

Here is a list of non-minor corrections and updates since the post was published.

  • Idle time in /proc/uptime is the sum of all cores (Dec 2, 2016)
  • My parent/child printf in zombie.c was reversed (Dec 2, 2016)
  • apt remove cron installs postfix because of a dependency to an MTA (Dec 3, 2016)
  • id can load information from other sources (via /etc/nsswitch.conf), not just /etc/passwd (Dec 3, 2016)
  • Describe /etc/shadow password hash format (Dec 3, 2016)
  • Use visudo to edit the /etc/sudoers file to be safe (Dec 3, 2016)
  • Explain MEM% (Dec 3, 2016)
  • Rewrite the section about load averages (Dec 4, 2016)
  • Fix: kill 1234 by default sends TERM not INT (Dec 7, 2016)
  • Explain CPU and memory color bars (Dec 7, 2016)
Final remarks

Please let me know if there is something wrong in this post! I will gladly correct it.

SHARE
